Dimensions

Bed Box Dimensions
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)

Estimated Dry Weight
1,565 lb (709.9 kg)

Front/Rear Rack or Box Capacity
N/A lb / 300 lb (N/A kg / 136 kg)

Fuel Capacity
9.5 gal (35.9 L)

Ground Clearance
13.5 in (34.3 cm)

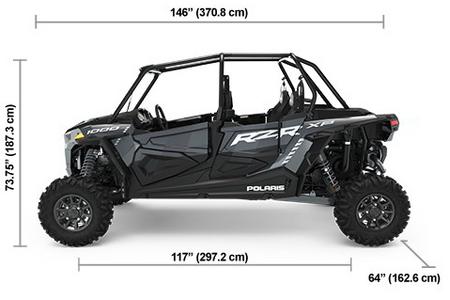

Overall Vehicle Size
146 x 64 x 73.75 in (370.8 x 162.6 x 187.3 cm)

Payload Capacity
900 lb (408 kg)

Person Capacity
4

Wheelbase
117 in (297.2 cm)

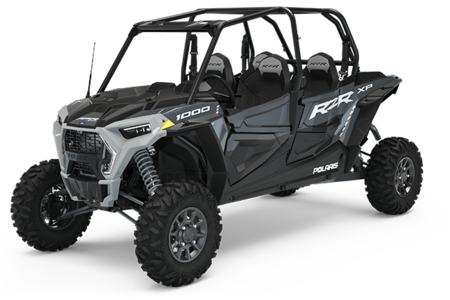

RZR XP 4 1000 EPS Ride Command

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers

Parking Brake
Park In-Transmission

Instrumentation
Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Reminder, 2 DC Outlets (front and rear)

Lighting
White LED, Low/High, Red LED Tail/Brake Lights

Rear Shocks
2.5 in Walker Evans Needle with 16-Position Adjustable Clickers

Rear Suspension
Trailing Arm with Stabilizer Bar and 18 in (45.7 cm) Travel

Seatbelts
Bolstered Bucket Seats with Front Seat Sliders and Rear Height Adjustable Seat Belts

Engine & Drivetrain

Cooling
Liquid

Cylinders Displacement
999cc

Drive System Type
High Performance True On-Demand AWD/2WD

Engine Braking System (EBS)
Not Equipped

Engine Type
ProStar 1000 H.O. 4-Stroke DOHC Twin Cylinder

Fuel System/Battery
Electronic Fuel Injection

HP
110 HP

Transmission / Final Drive
Automatic PVT P/R/N/L/H

Specifications

Cargo System
Lock & Ride®

Doors
Bowed 1/4 Doors

Front Shocks
2 in Walker Evans Needle with 16-Position Adjustable Clickers

Front Suspension
Dual A-Arm 16 in (40.6 cm) Travel

Hitch Towing Rating
N/A

Hitch Type
None
